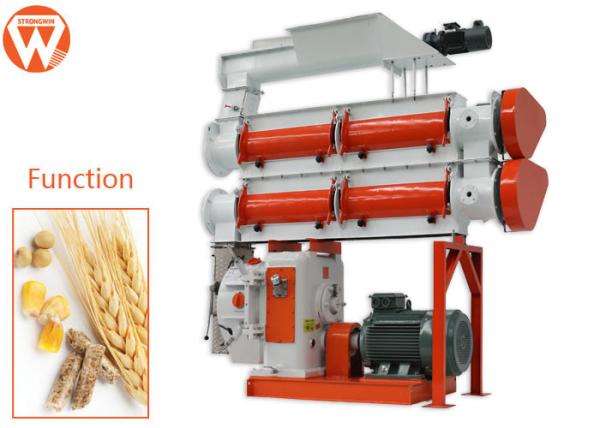

Chicken Feed Pellet Machine High Output 15T/H 132Kw High Efficiency Energy Saving

Brand Name : Strongwin

Model Number : SZLH508

Certification : CE,ISO,SGS

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 sets per Year

Delivery Time : 6-10 working days

Packaging Details : In Container

Product name : Chicken feed pellet production machine

Motor : Siemens Motor

Bearing : SKF Bearing

Voltage : 220v,380v, or Customized

Raw Materials : wheat, maize, soybean, grass etc

Can make feed for : pig,cow, sheep,chicken,bird,broiler etc

Pellet Size : φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm

Capacity : 15t/h

Contact Now

High Output 15T/H 132Kw 1 -12 Mm Pellet Diameter Chicken Feed Pellet Production Machine

Applied range of chicken feed pellet production machine

SZLH series Pellet Mil takes both advantages of belt and gear machines, improve the weakness, and meanwhile make the pellet production more efficient, faster and save more energy, which has made great contribution to pellet mill.

Currently it has been formed pelletizing series including livestock and poultry feed, ruminant feed and aquatic feed.

Advantage of SZLH chicken feed pellet production machine

1. Main drive adopts high accuracy gearbox for high efficiency.

2. Full stainless steel increased conditioning device ensure high quality of feed pellet.

3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.

4. High output, low noise, convenient operation and maintenance.

5. Main parts of the bearing and standard parts are imported.

Technical Parameters of chicken feed pellet production machine

Items SZLH508
Production Capacity 15t/h
Power of Main Motor 132kw
Power of Feeding Screw Motor 1.5kw
Power of conditioner Motor 5.5kw
Diameter of ring die Φ508mm
Speed of ring die(r/min) 287r/min
Speed of feeding screw 12-120rpm
Speed of stirrer 350r/min
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of roller Φ222mm
Shaping rate of pellet ≥ 95%
Pulverization rate of pellet ≤12%
Stability of pellet in the water ≥20min
Noise (dB(A)) ≤90dB(A)
Working temperature of ring die ≤85℃
Working pressure of steam 0.1-0.4Mpa
Steam consumption(t/h) ≥1
Temperature of steam(℃) 130-150℃
Voltage 3phase 380V,50Hz Can be customized)
Control cabinet Included
